Key Features

  • IP67 Waterproof with Silicone Material
  • Addressable, Compatible with DMX512(1990) protocol.
  • Adopting RS485 signal trunk and signal differential transmission mode
  • TOP View 1615 IP67, DC24V, with vertical bending direction.
  • Two versions: Constant Voltage version and Constant Current version.
  • Various connections type: Front/Side/Bottom cable entry.
  • Yellowing Resistance, Solvent and Saltwater resistance
  • Uniform Luminescence, No spot, very soft light effect
  • Automatically address with the editor.

Details Of DMX512 LED Neon N1615

Product Description



1. DMX512 Pixel RGB Ledline Flex TOP 1615 IP67, DC24V, with vertical bending direction.

2. Compatible with DMX512(1990) protocol.

3. Adopting RS485 signal trunk and signal differential transmission mode to ensure the stronger ability of anti-interference and longer transmission distance.

4. Automatically address with the editor.

5. Various connections type: Front/Side/Bottom cable entry.

6. High light transmittance, environmental protection grade silicone material, integrated extrusion molding process.

7. Unique optical light distribution structure design, uniform lighting surface, and no shadow.

8. IP67 protection level, salt solution resistance, acids & alkalis, corrosive gases, and UV.

9. Excellent toughness, simple and stylish appearance, delicate, and unique.

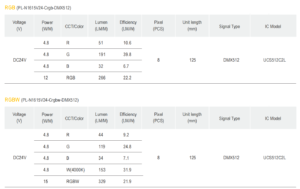

Technical Specifications







Packing
